Double Leg Rafter Mount Point-Of-Attachment Brackets – D’ Rated

$184.76$314.90 + GST 10%

Adept Direct supply the complete range of Clarke D Rated Double Leg POA Brackets.

Australian designed and manufactured, Clarke Point-Of-Attachment Brackets are suitable for three phase or single phase aluminium aerial service lines up to approximately: 50m in length. These dual leg POA brackets are ideal for situations where the cable is pulling on the bracket at an angle greater than 45°. These robust POA brackets are hot dip galvanised for a long lasting, durable finish.

With thousands of Clarke Point of Attachment brackets successfully installed across NSW you can have absolute confidence in Clarke quality.

Clear

Description

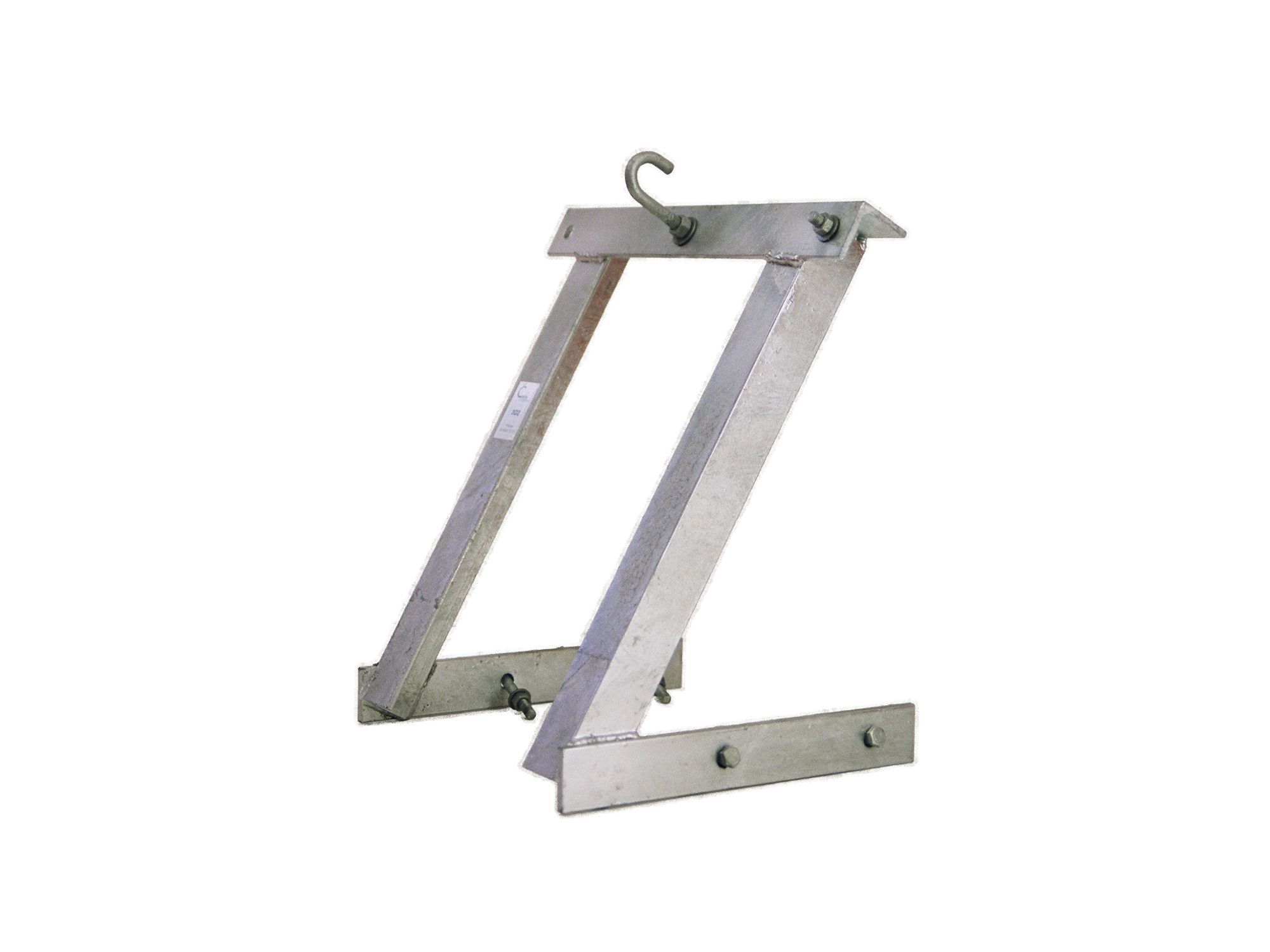

RAFTER MOUNT DOUBLE LEG POA BRACKETS

Clarke Double Leg Rafter Mount POA Brackets are designed to be installed to the rafters behind the fascia board. The roof penetration around both vertical legs needs to be flashed to prevent water entry into the roof area. Rafter Mount POA Brackets are supplied with 2 x M10 galvanised rafter fixing bolts.

Clarke POA Bracket Model Number Nominal Height Price + GST
ACI2D1R 300mm $155.30
ACI3D1R 450mm $179.60
ACI4D1R 600mm $207.70
ACI5D1R 750mm 238.40
ACI6D1R 900mm 264.70

For exact details regarding required bracket strength ratings for particular applications, please refer to Service & Installation Rules, your local Supply Authority or Service Provider.

All Clarke POA Brackets must be installed by a qualified electrician.

Additional information

Size

300mm, 450mm, 600mm, 750mm, 900mm
